Chillers
Efficiency like never before.
Water-Cooled Series

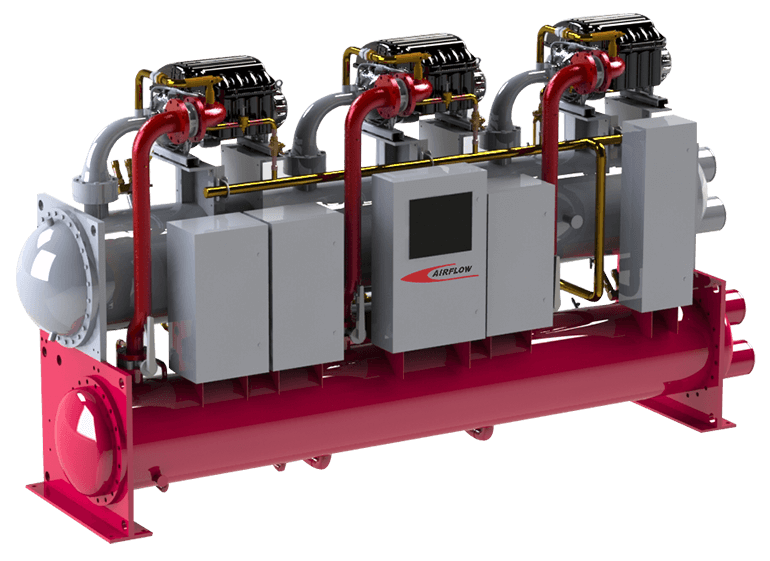

AFO-W Series - Water Cooled Oil Free Chiller
- Superior energy savings with our highly efficient magnetic oil-free centrifugal compressor.
- 90 – 2000 TR cooling capacity per chiller
- Flooded evaporator and shell and tube condenser
- Electronic expansion valve
- R134a/R1234ze refrigerant

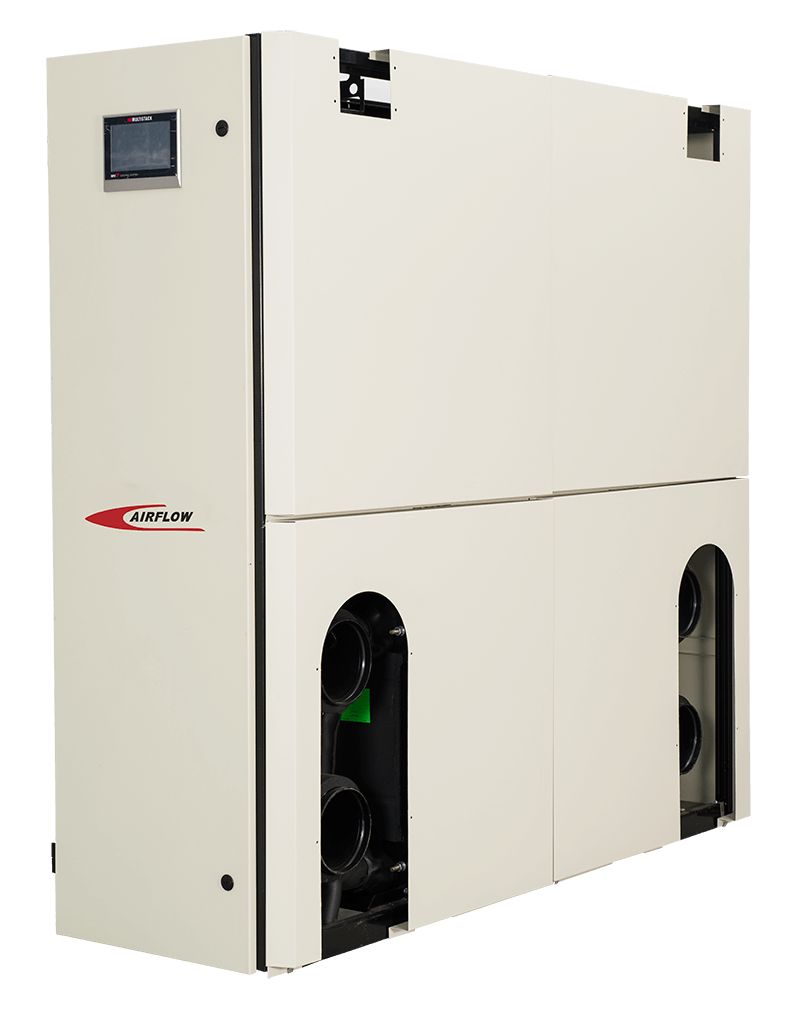

AFSR-W Series - Modular Water Cooled Scroll Chiller
50 – 250 kW cooling capacity per module
Scroll compressor
Plate type evaporator and condenser
Built-in big water pipes; compact and future add-on
R410A refrigerant

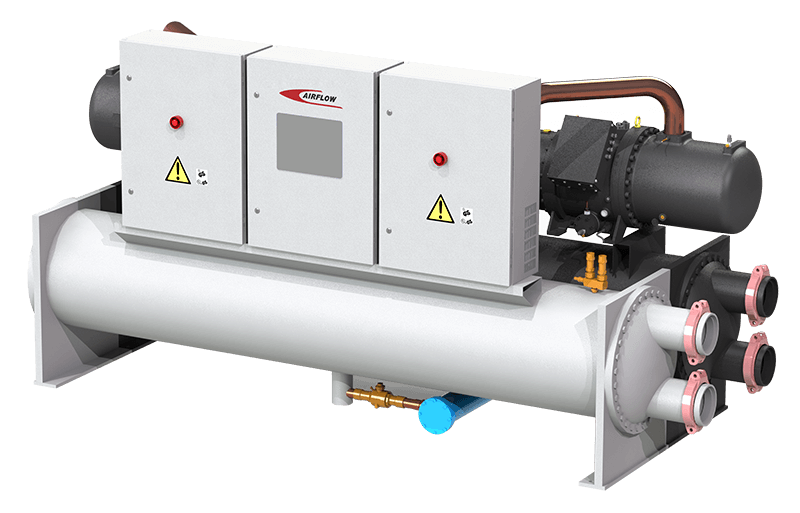

AFV-W Series – Water Cooled VSD Screw Chiller
50 – 480 TR cooling capacity per chiller
VSD screw compressor
Falling film evaporator and shell and tube condenser
Electronic expansion valve
R134a / R513a refrigerant
Air-Cooled Series

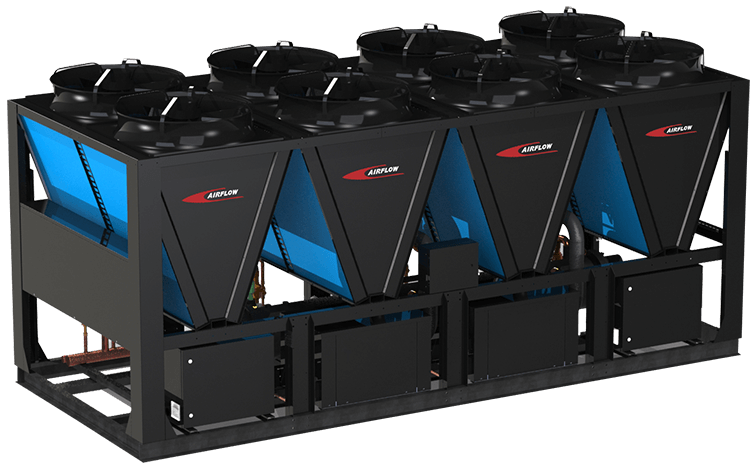

AFO-A Series - Air Cooled Oil Free Chiller
80–400 TR cooling capacity per chiller
Oil-free centrifugal compressor
Flooded evaporator
Copper tube and aluminium fin condenser
Electronic expansion valve
EC condenser fan
Compatible with R134a / R1234ze refrigerants

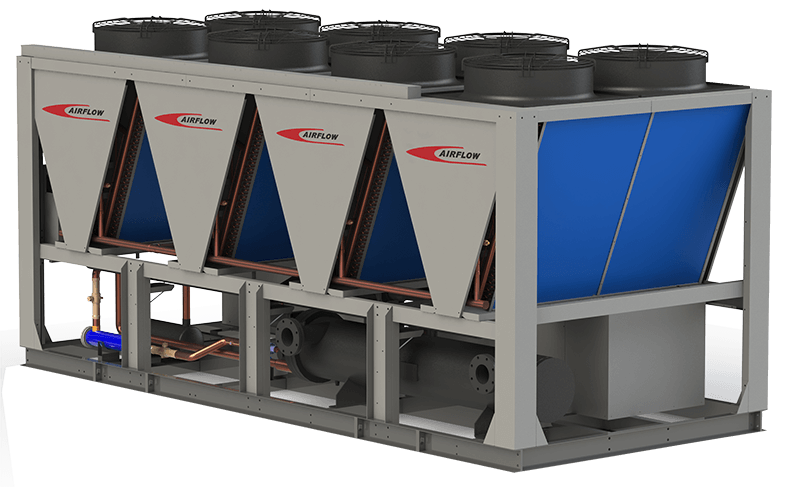

AFV-A Series - Air Cooled VSD Screw Chiller
35–350 TR cooling capacity per chiller
VSD screw compressor
Falling film evaporator
Copper tube and aluminium fin condenser
EC condenser fan
Compatible with R134a / R513a / R1234ze refrigerants
Heat recovery options available

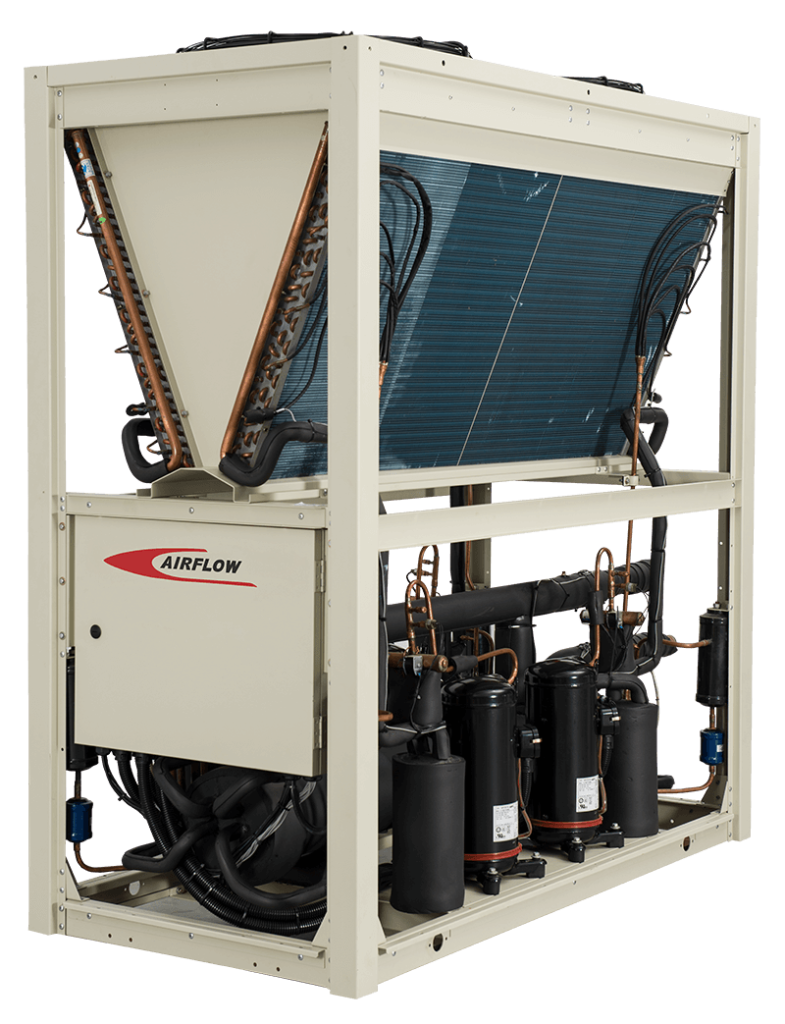

AFSR-A Series - Modular Air Cooled Scroll Chiller
60–340 kW cooling capacity per module
Scroll compressor
Electronic expansion valve
Shell and tube evaporator
Copper tube and aluminium fin condenser
Heat pump options available
Independent refrigerant circuit for each compressor
Compatible with R410A refrigerant

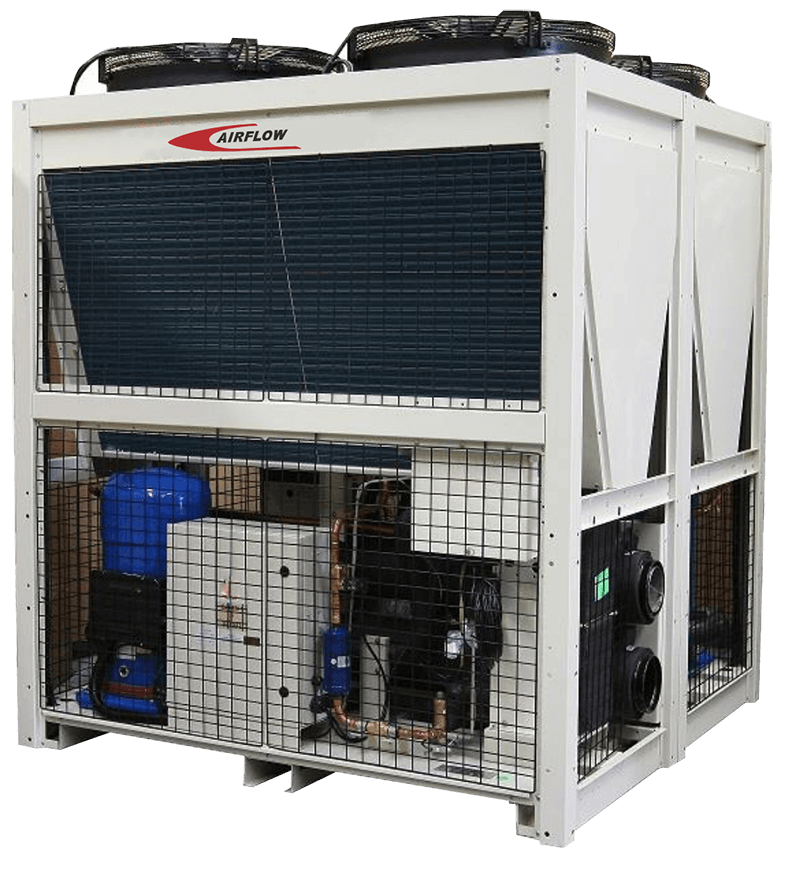

AFVR-A Series - Modular Air Cooled DC Inverter Scroll Chiller / Heat Pump
Cooling capacity per module: 70–420 kW
Maximum number of modules per bank: 1–16
Maximum cooling capacity per bank: 600 RT
High-efficiency VSD scroll compressor
High-efficiency plate type or shell and tube evaporator
Compatible with R410A refrigerant
Energy efficiency enhanced by 30%; COP and IPLV meet LV1 energy efficiency standards

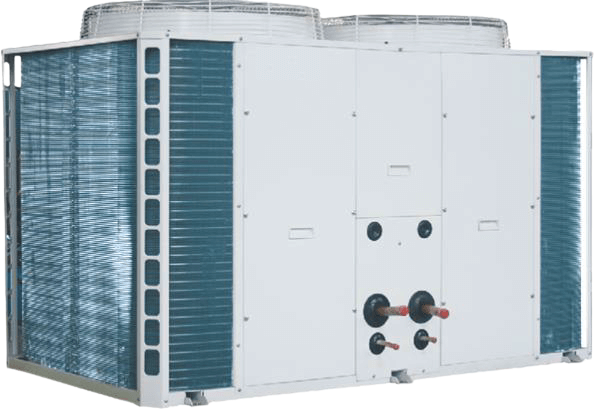

Direct Expansion Unit & Rooftop Packaged Unit
Contact us to customise to your needs!
Air Handling Unit

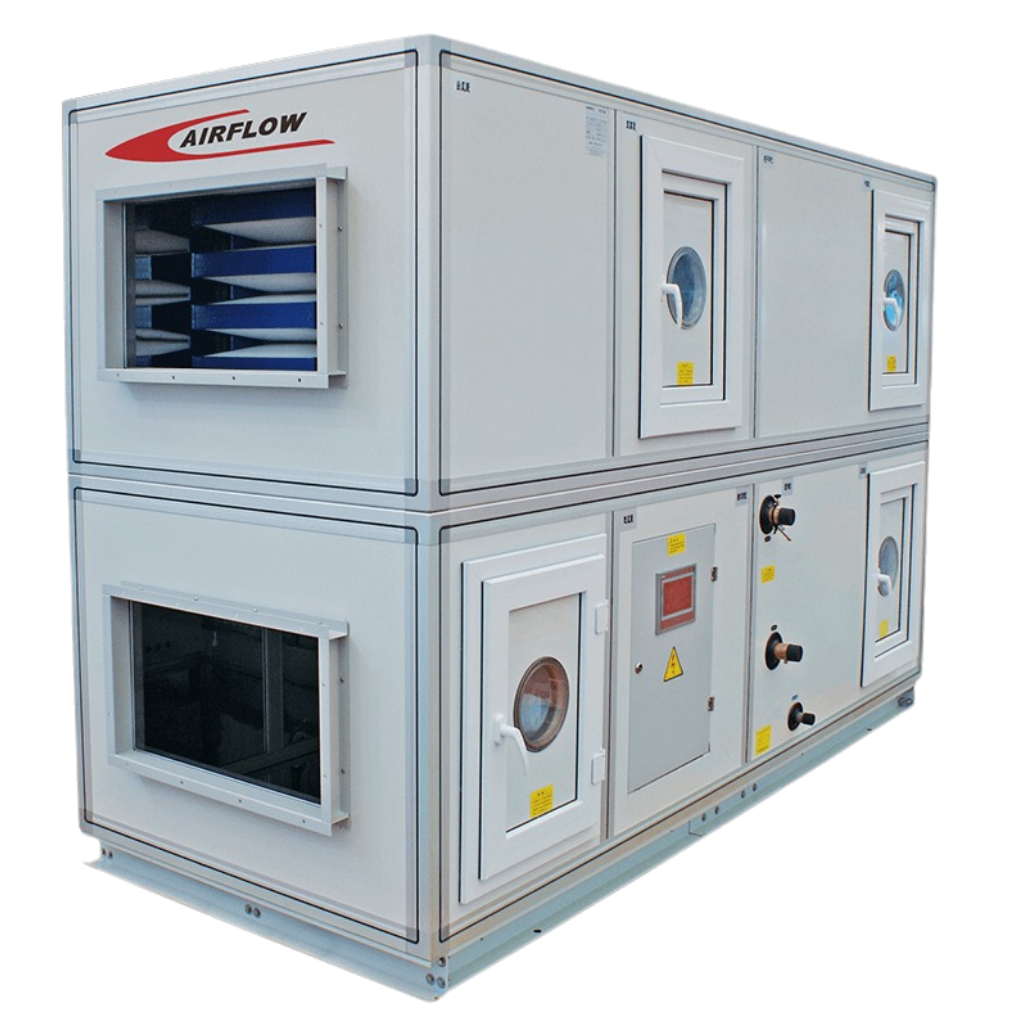

Modular Air Handle Unit Polyurethane Type
- Modular Design, and flexible combination
- Patented double skin framework structure design
- High strength & durability with low leakage, high thermal efficiency.
- Good thermal performance in the presence of a temperature gradient.
- The internal metal casing is isolated from the outside metal casing by high density (50kg/m) polyurethane foam and rubber sealing strips.
- Every module has a sub pressure access door which opens outwards and a positive access door which opens inwards.
This assures there is no cold bridge and air leakage of positive pressure and sub pressure sections.
Standard configuration
- Colorbond outer panel
- Galvanized steel inner panel
- Available in 25mm,35mm, 50mm thick polyurethane
Fan Coil Unit

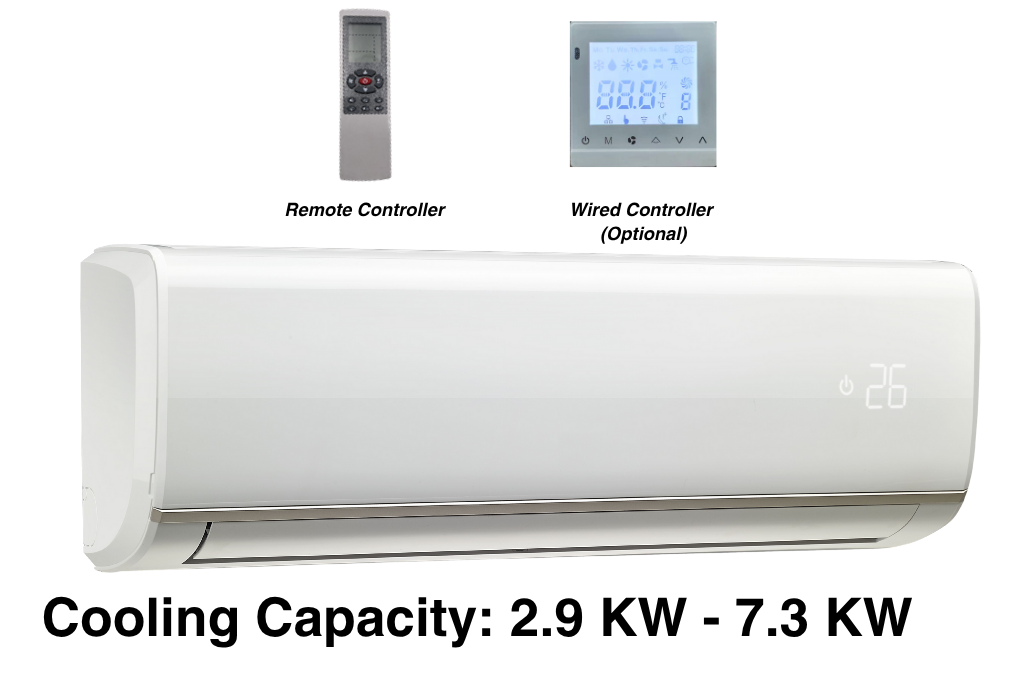

Chilled Water Wall Mount FCU
- Microprocessor automatic control
- Coated with Antimicrobial & Anticorrosion protection on Evaporator Coil
- Quiet operation with uniform air distribution
- 5 fan speed selection
- Electronically Commutated (EC) Energy saving fan motor
- Evaporator Coil Pressure leak test: 3 MPa (30 Bar)
- Built-in RS-485 communication
- Easy Integration to Building Management System

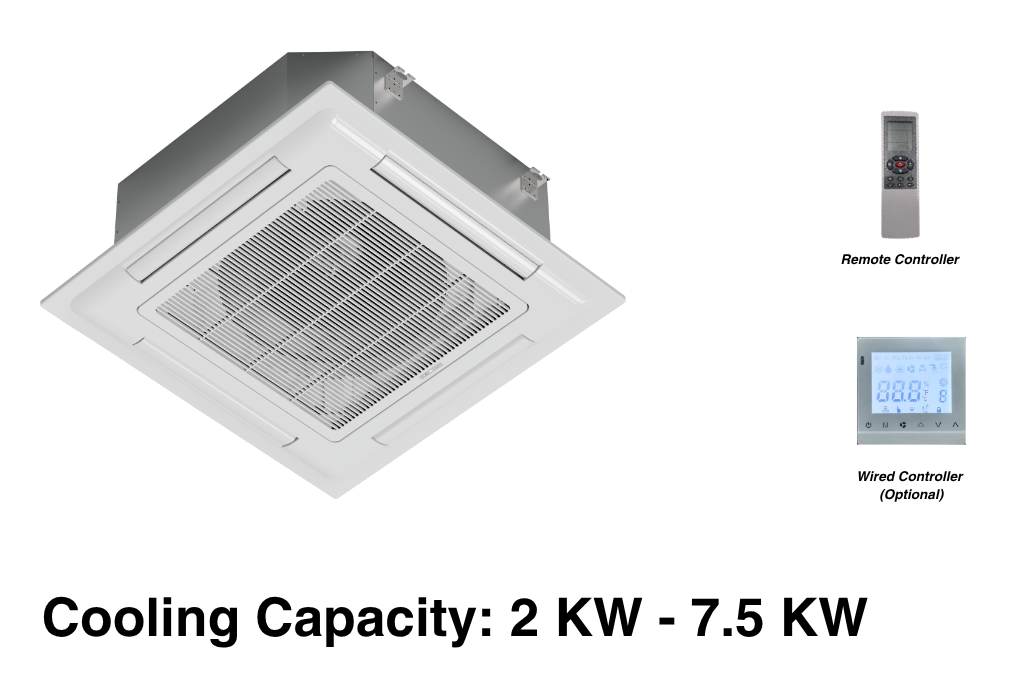

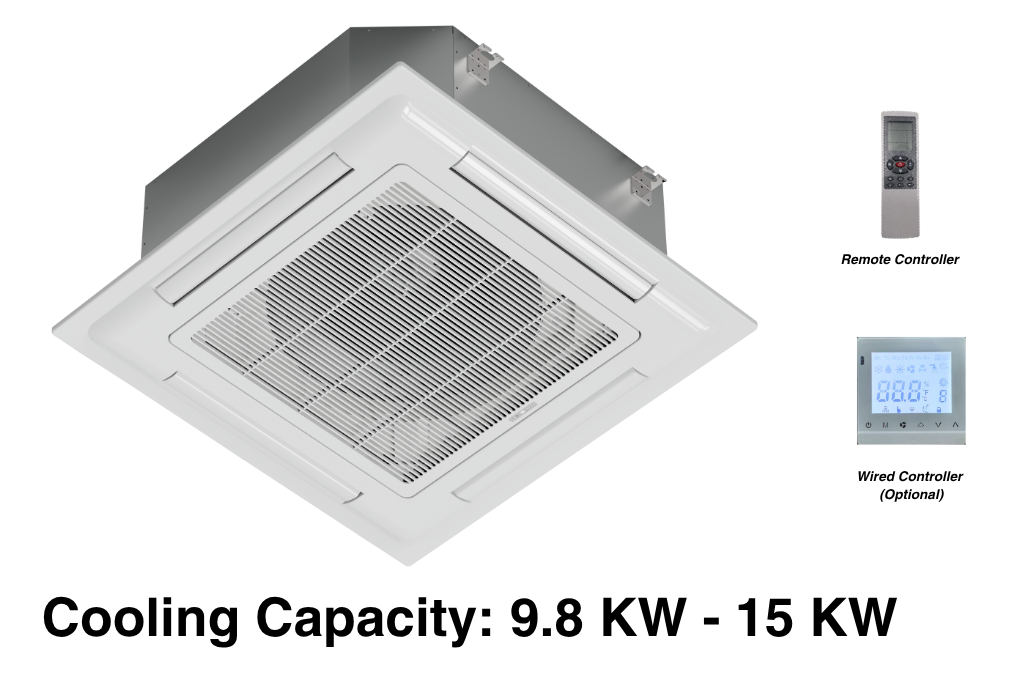

Chilled Water Ceiling Cassette FCU
- Microprocessor automatic control
- Coated with Antimicrobial & Anticorrosion protection on Evaporator Coil
- Quiet operation with uniform air distribution
- 5 fan speed selection
- Electronically Commutated (EC) Energy saving fan motor
- Evaporator Coil Pressure leak test: 3 MPa (30 Bar)
- Built-in RS-485 communication
- Easy Integration to Building Management System
Chilled Water Ceiling Cassette FCU
- Microprocessor automatic control
- Coated with Antimicrobial & Anticorrosion protection on Evaporator Coil
- Quiet operation with uniform air distribution
- 5 fan speed selection
- Electronically Commutated (EC) Energy saving fan motor
- Evaporator Coil Pressure leak test: 3 MPa (30 Bar)
- Built-in RS-485 communication
- Easy Integration to Building Management System

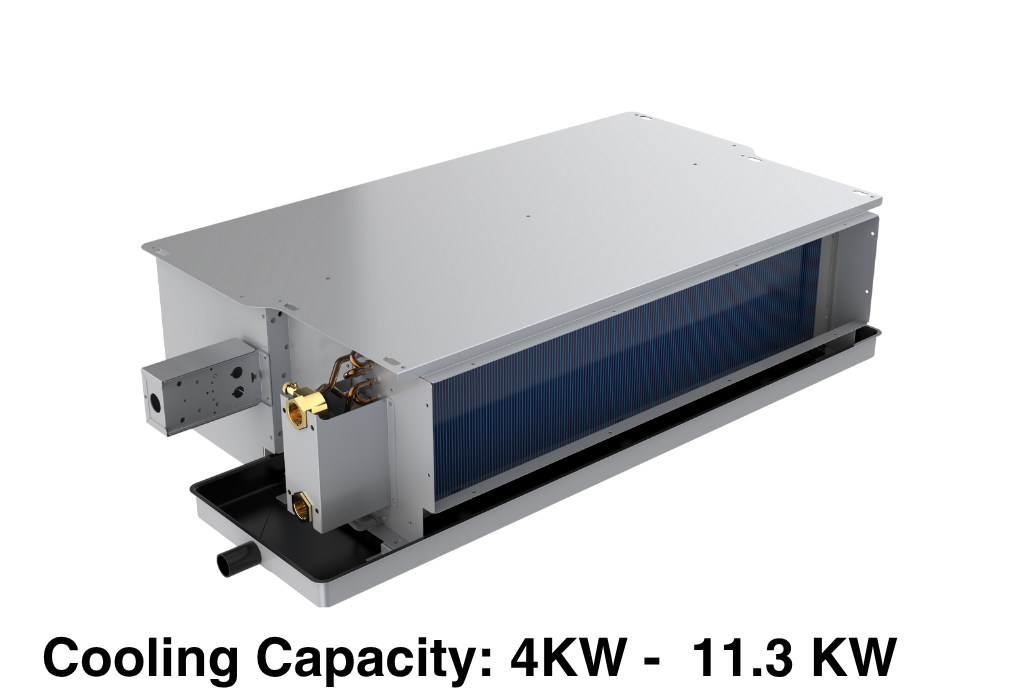

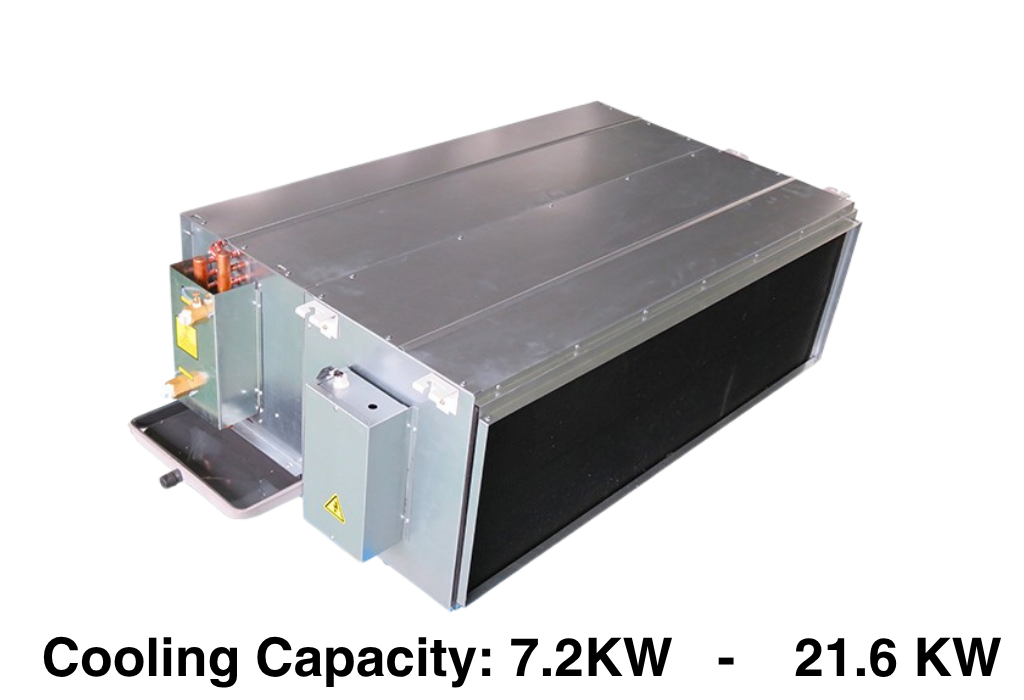

Concealed Ducted Type (Low)
- Low Static Pressure
ESP 50Pa - Coated with Antimicrobial & Anticorrosion protection on Evaporator Coil
- Quiet operation with uniform air distribution
- Electronically Commutated (EC) Energy saving fan motor
- Evaporator Coil Pressure leak test: 3 MPa (30 Bar)
- Water drain pan coated with anti-corrosion coating to prevent rust.
- Easy integration to Building Management System.

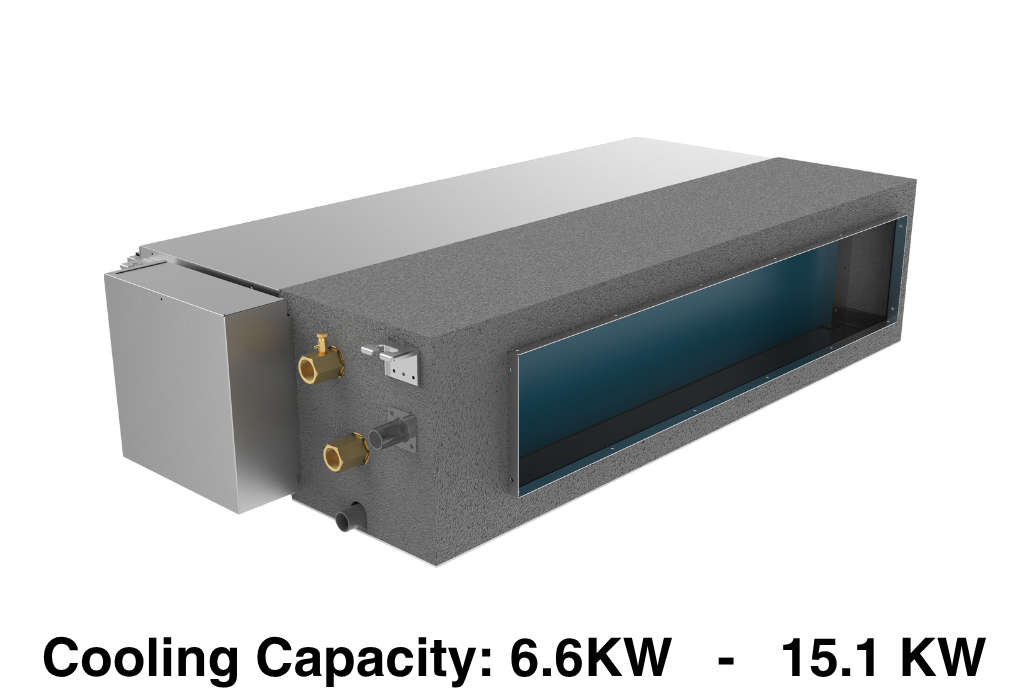

Concealed Ducted Type (Medium)
- Medium Static Pressure
ESP 75Pa - Coated with Antimicrobial & Anticorrosion protection on Evaporator Coil
- Quiet operation with uniform air distribution
- Electronically Commutated (EC) Energy saving fan motor
- Evaporator Coil Pressure leak test: 3 MPa (30 Bar)
- Water drain pan coated with anti-corrosion coating to prevent rust.
- Easy integration to Building Management System.
Concealed Ducted Type (High)
- High Static Pressure
ESP 100Pa - Coated with Antimicrobial & Anticorrosion protection on Evaporator Coil
- Quiet operation with uniform air distribution
- Electronically Commutated (EC) Energy saving fan motor
- Evaporator Coil Pressure leak test: 3 MPa (30 Bar)
- Water drain pan coated with anti-corrosion coating to prevent rust.
- Easy integration to Building Management System.
